15, 18, 20BCS-9

15, 18, 20BCS-9

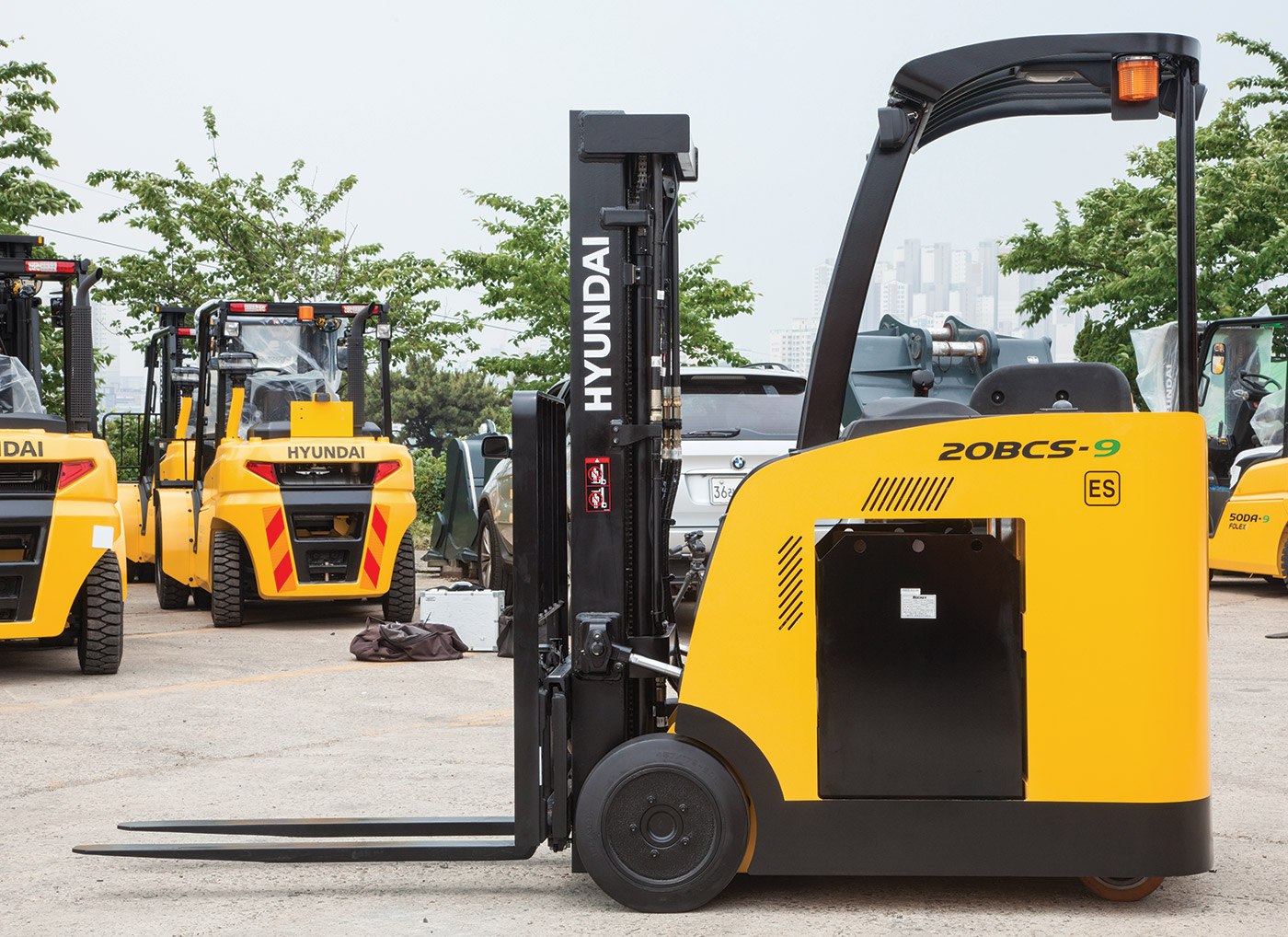

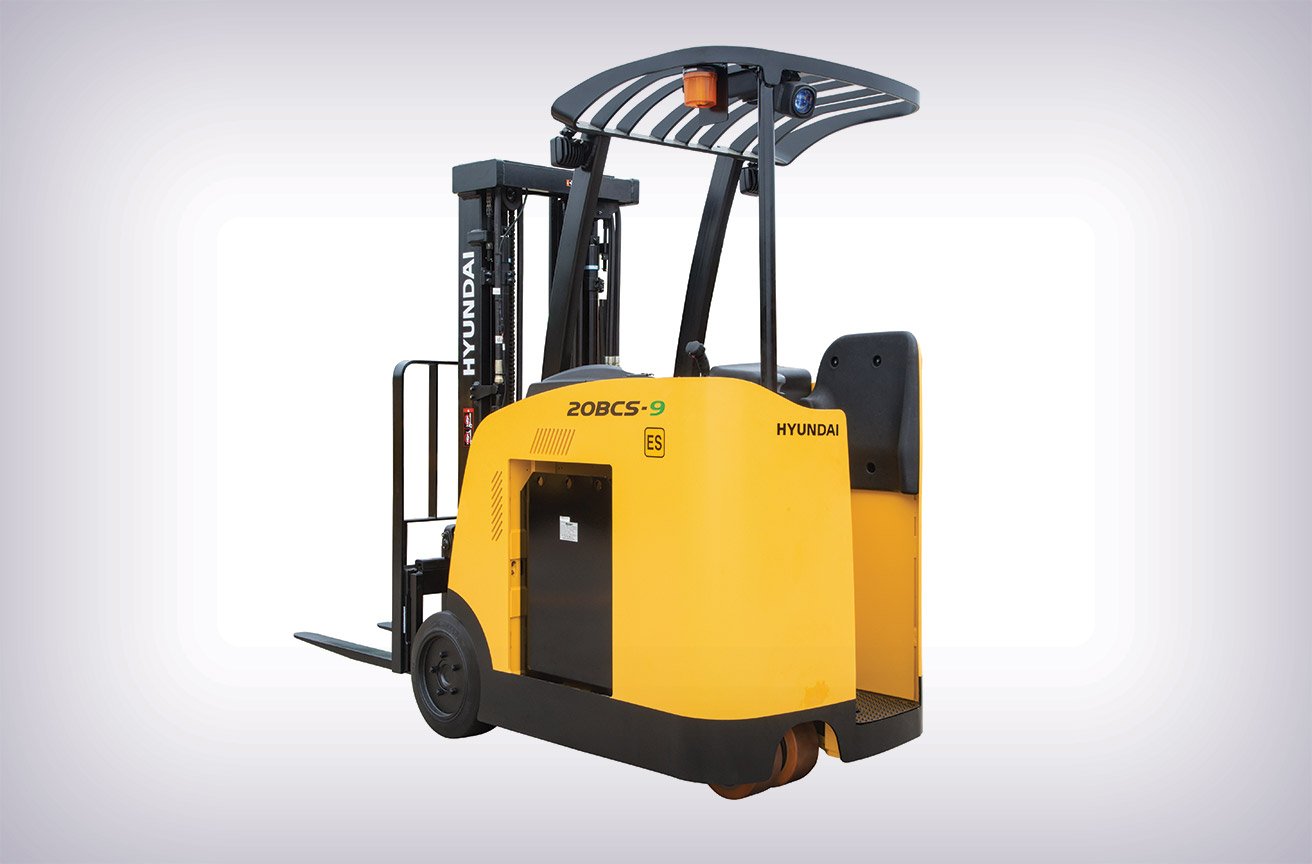

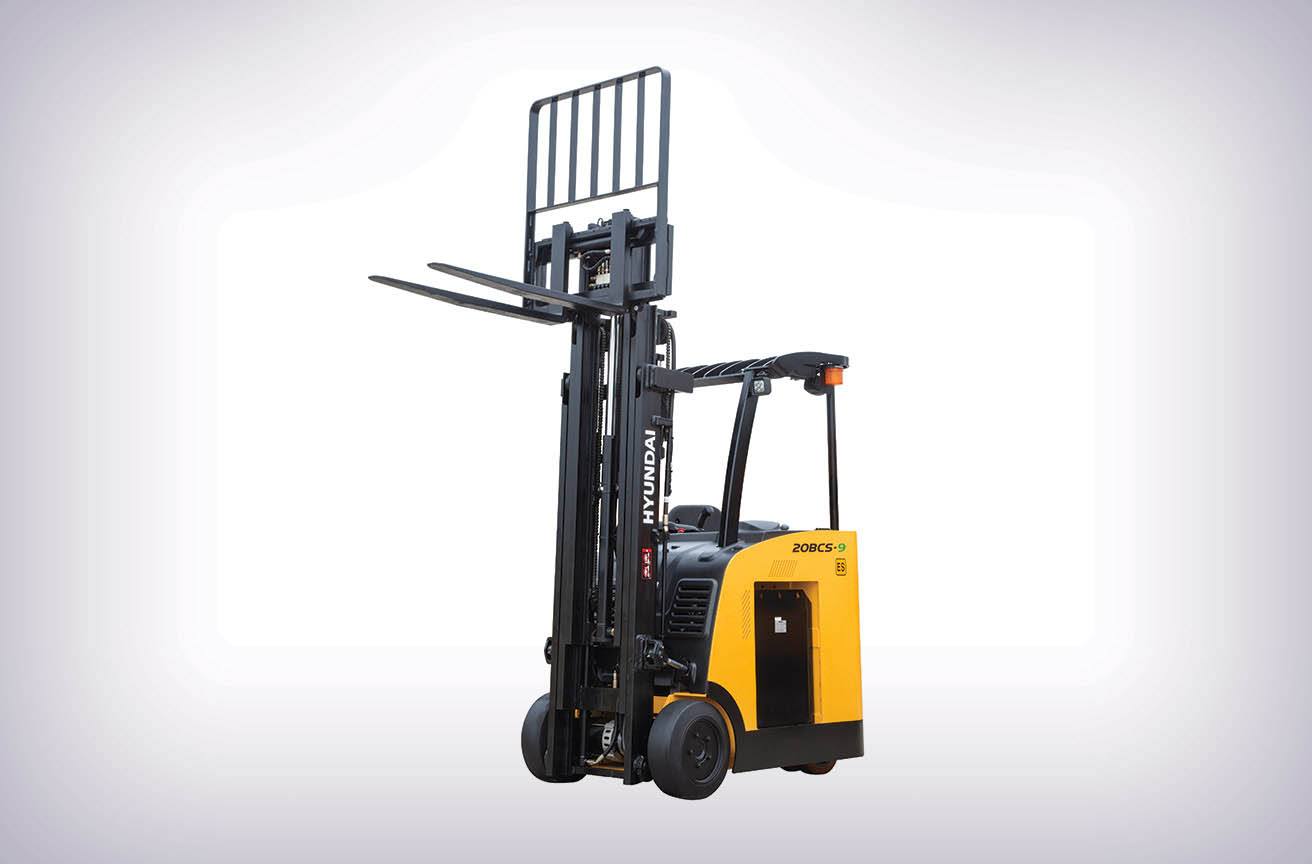

Hyundai introduces a range of 9-series stand up counterbalance battery forklift trucks. Designed for applications where the operator is required to enter and exit the forklift frequently, they are available in a range of capacities up to 2.0 tonne with lift heights up to 6 metres.

LOAD CAPACITY:

1,500 TO 2,000KG

VOLTAGE/AMPERAGE:

36V / 1085-1240AH

TRAVEL SPEED (UNLOADED):

12.1 KPH

TURNING RADIUS:

1,397MM to 1,466MM

LENGTH TO FACE OF FORKS:

1,727MM - 1,796MM

OVERHEAD GUARD HEIGHT:

2,233MM

OVERALL WIDTH:

1,067MM
request-quoteENQUIRE NOW
FIND A DEALER
DOWNLOAD PRODUCT BROCHURE

PRODUCT FEATURES

KEY BENEFITS

  • Spacious operator compartment for easy entry exit
  • Joystick control for intuitive operation
  • Curve control system reducing speed based on angle of the drive wheel
  • Load weight indicator
  • 3.5″ LCD smart display monitor with self-diagnostics
  • IP65 Water proof controller for outdoor operation
  • Electronic steering system for higher efficiency
  • Ergonomically designed operating system

SAFETY

  • High visibility mast for safe operation
  • The safety overhead guard meets ISO 6055 and ANSI regulations and protects the operator during hazardous work
  • Intuitive joy stick control
  • Low step up height for easy access with non slip floor mat
  • Safety pedal in floor applying parking brake when not depressed
